Productdetails:
|

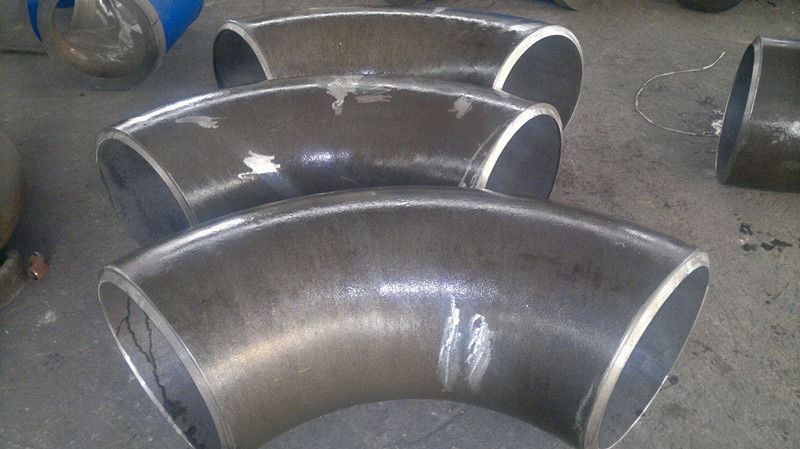

Afmetingen van Lange Straalellebogen - ASME B16.9
| NPS | OD, D | Centrum om te beëindigen | |
| 90 gr.-Ellebogen, A | 45 gr.-Ellebogen, B | ||
| 1/2 | 21.3 | 38 | 16 |
| 3/4 | 26.7 | 38 | 19 |
| 1 | 33.4 | 38 | 22 |
| 1 ¼ | 42.2 | 48 | 25 |
| 1 ½ | 48.3 | 57 | 29 |
| 2 | 60.3 | 76 | 35 |
| 2 ½ | 73 | 95 | 44 |
| 3 | 88.9 | 114 | 51 |
| 3 ½ | 101.6 | 133 | 57 |
| 4 | 114.3 | 152 | 64 |
| 5 | 141.3 | 190 | 79 |
| 6 | 168.3 | 229 | 95 |
| 8 | 219.1 | 305 | 127 |
| 10 | 273 | 381 | 159 |
| 12 | 323.8 | 457 | 190 |
| 14 | 355.6 | 533 | 222 |
| 16 | 406.4 | 610 | 254 |
| 18 | 457 | 686 | 286 |
| 20 | 508 | 762 | 318 |
| 22 | 559 | 838 | 343 |
| 24 | 610 | 914 | 381 |
| 26 | 660 | 991 | 406 |
| 28 | 711 | 1067 | 438 |
| 30 | 762 | 1143 | 470 |
| 32 | 813 | 1219 | 502 |
| 34 | 864 | 1295 | 533 |
| 36 | 914 | 1372 | 565 |
| 38 | 965 | 1448 | 600 |
| 40 | 1016 | 1524 | 632 |
| 42 | 1067 | 1600 | 660 |
| 44 | 1118 | 1676 | 695 |
| 46 | 1168 | 1753 | 727 |
| 48 | 1219 | 1829 | 759 |
